Question

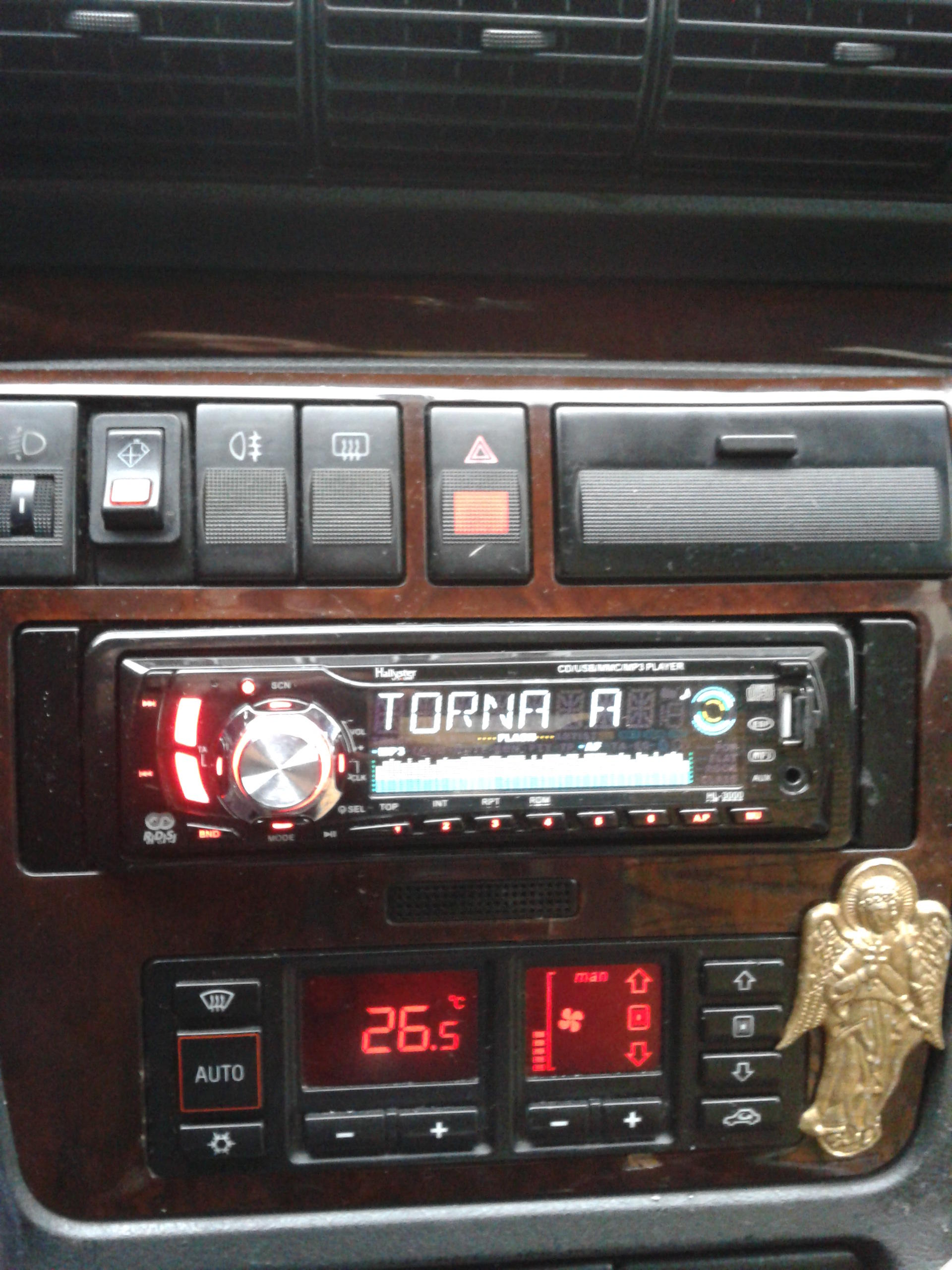

buna ziua,asi vrea si eu niste informati despre folosirea cliatronicului la un AUDI A4,motor 1.6 , din 1997, mai exact cine stie sa imi spuna ce inseamna fiecere canal, sau daca ecxista o carte ceva,in cartea masini pe care o am nu este detaliat, vreau sa mai stiu daca pot vedea consumul de benzina,nu stiu cum se foloseste acele canaluri de la climatronic si ma gandeam ca poate mi se afiseaza si consumul!

 Va rog sa ma ajutati,sunt tare interesat sa stiu ecxact cat consuma masina,si ce inseamna fiecare canal.

Answer 1

–1 vot

A raspuns bysconty EXPERT (109,230 puncte) acum 13 ani nu inteleg la ce "canale te referi" in stanga reglezi gradele celsius din + si - cate vrei,si in dreapta reglezi cat de tare sa dea aer.din sagetile alea schimbi cald/rece etc

Answer 2

+1 vot

A raspuns vladdd (13,540 puncte) acum 13 ani Nu bysconty, el se referea la faptul ca la climatronic sunt niste canale ca iti indica temperatura din masina, temperatura uleilui, viteza cu care mergi...  si multe altele. Cred ca gasesti lista pe vwforum

Answer 3

+2 voturi

A raspuns Driver09 (49,100 puncte) acum 13 ani Apesi consecutiv pe recirculare si sageata sus (directionare aer) ca sa intri la canale.
Pe + si - ul de la display-ul din stanga te plimbi printre coduri  si pe recirculare apesi ca sa intri intr-un anume canal care iti va afisa ceea ce are stocat in comanda respectiva.
Ca sa iesi de tot sunt mai multe moduri, unul din ele fiind acelasi taste concomitente pe care le-ai apasat ca sa intrii la canale.
Uite codurie  care merg la mine  a4b5 96

Code     Displayed Value
1     System malfunction - displayed as a Diagnostic Trouble Code (DTC), see chart below
2     Digital value of Interior Temperature Sensor, in Headliner (G 86)
3     Digital value of Interior Temperature Sensor, in Instrument Panel (G 56)
4     Digital value of Fresh Air Intake Duct Temperature Sensor (G 89)
5     Digital value of Outside Air (Ambient) Temperature Sensor (G 17), front
6     Digital value of Outside Air (Ambient) Temperature Sensor
7     Digital value of Ambient Temperature Sensor At Fresh Air Blower (G 109)
8     Digital value of Temperature Regulator Flap Motor Potentiometer (G 92)
9     Delta value of Temperature Regulator Flap
10     Non-corrected specified value of Temperature Regulator Flap
11     Digital value of Central Flap Motor Potentiometer (G 112)
12     Specified value of Central Flap
13     Digital value of Footwell/Defroster Flap Motor Potentiometer (G 114)
14     Specified value of Footwell/Defroster Flap
15     Digital value of Air Flow Flap Motor Potentiometer (G 113)
16     Specified value of Air Flow Flap
17     Vehicle Speed (km/h)
18     Actual Air Blower voltage (Volts)
19     Specified Fresh Air Blower voltage (Volts)
20     A/C Compressor (A/C Clutch) voltage (Volts)
21     Number of low voltage occurrences, non-transient
22     Cycle condition of A/C Refrigerant High Pressure Switch (F 118)
23     Cyclings of the A/C Refrigerant High Pressure Switch (F 118)
24     Cyclings of the switches, absolute non-fluctuating
25     Analog/Digital value, Kick-Down Switch
26     Analog/Digital value, Engine Coolant Temperature (ECT) Warning Light
27     Coding value
28     Engine Speed (RPM)
29     A/C Compressor speed in rpm (Equals Engine Speed x 1.28)
30     Software version
31     Display check (all segments of A/C Control Head display light up)
32     Potentiometer malfunction counter, Temperature Regulator Flap
33     Potentiometer malfunction counter, Central Flap
34     Potentiometer malfunction counter, Footwell/Defroster Flap
35     Potentiometer malfunction counter, Air Flow Map
36     Feedback value, cold end-stop, Temperature Regulator Flap Motor Potentiometer (G 92)
37     Feedback value, hot end-stop, Temperature Regulator Flap Motor Potentiometer (G 92), max. stop
38     Feedback value, cold end-stop, Central Flap Motor Potentiometer (G 112)
39     Feedback value, hot end-stop, Central Flap Motor Potentiometer (G 112)
40     Feedback value, cold end-stop, Footwell/Defroster Flap Motor Potentiometer (G114)
41     Feedback value, hot end-stop, Footwell/Defroster Flap Motor Potentiometer (G114)
42     Feedback value, cold end-stop, Air Flow Map Motor Potentiometer (G 113)
43     Feedback value, hot end-stop, Air Flow Map Motor Potentiometer (G 113)
44     Vehicle operation cycle counter
45     Calculated interior temperature (internal software, in digits)
46     Outside (ambient) temperature, filtered, for regulation (internal software)
47     Outside (ambient) temperature, unfiltered, (internal software, in deg C)
48     Outside (ambient) temperature, unfiltered, (in digits)
49     Malfunction counter for speedometer (vehicle speed) signal
50     Standing time (in minutes)
51     Engine Coolant Temperature (ECT) in deg C
52     Graphics channel 1 - A/C compressor switch-off conditions are identified by illuminated segments of the "88.8" display.  See chart below.
53     Graphics channel 2 - Climate system electrical outputs are identified by illuminated segments of the "88.8" display.  See chart below.
54     Control characteristics
55     Outside (ambient) temperature, in deg C or deg F depending on setting on A/C control head
56     Temperature in deg C, from Interior Temperature Sensor, in Headliner (G 86)
57     Temperature in deg C, from Interior Temperature Sensor, in Instrument Panel (G 56)
58     Temperature in deg C, from Fresh Air Intake Duct Temperature Sensor (G 89)
59     Temperature in deg C, from Outside Air (Ambient) Temperature Sensor (G 17), front
60     Temperature in deg C, from Ambient Temperature Sensor At Fresh Air Blower (G 109)
61     Software version (latest)

Comments

Ms, e bine,doar ca eu am vreo 85 de prog.canalurii. oricum ms mult.
